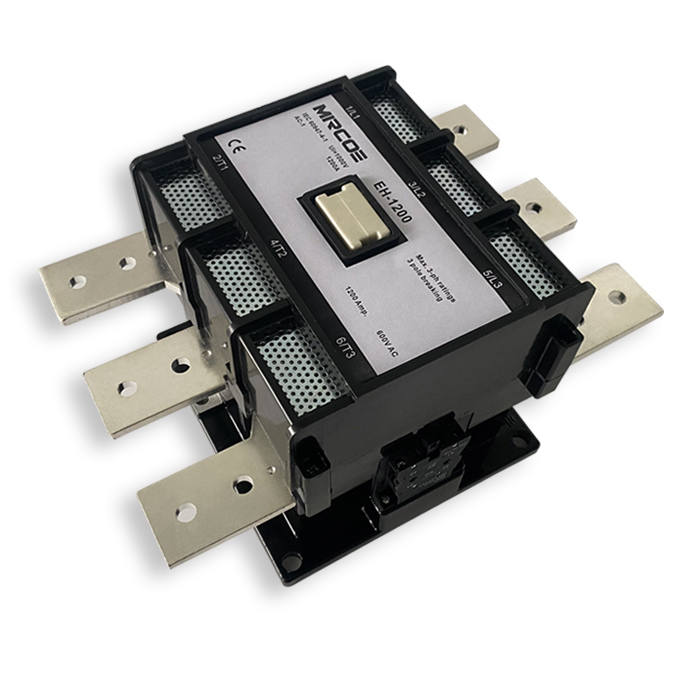

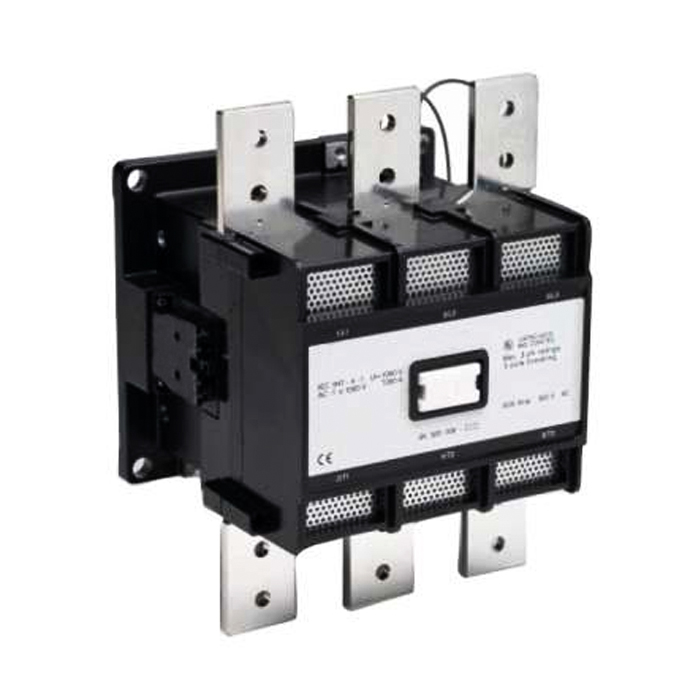

MEH(EH) series AC contactors is mainly used in the electric power circuit of AC 50Hz or 60Hz, rated voltage to 690V, current to 1200A for making and breaking circuit, and it can be formed into motor starter with thermal relay or electronic protector for protecting from overload circuit.
Mainly used for motor starters, compressors, electrical control panels, and motor maintenance, with voltages of 110V, 220V, and 380V. The working current is EH80A, EH90A, EH100A, EH110A, EH145A, EH150A, EH175A, EH210A, EH250A, EH260A, EH300A, EH370A, EH450A, EH550A, EH700A, EH800A, EH1200A
MEH | 80 | 90 | 100 | 145 | 175 | 210 | 260 | 300 | 370 | 550 | 700 | 800 | |
Ui V | 690 | ||||||||||||
Ith A | 145 | 160 | 200 | 230 | 260 | 300 | 400 | 445 | 550 | 800 | 1000 | 1000 | |
Ue V | 220 | ||||||||||||
380 | |||||||||||||
660 | |||||||||||||
Under Interruption Period Operation System le (A) | AC-1 | 145 | 160 | 200 | 230 | 260 | 300 | 400 | 445 | 550 | 800 | 1000 | 1000 |
AC-3 | 80 80 65 | 90 90 70 | 120 120 120 | 145 145 120 | 185 185 170 | 210 210 210 | 260 260 250 | 305 305 280 | 400 400 370 | 550 550 550 | 700 700 700 | 750 750 750 | |
AC-4 | 80 80 30 | 80 80 35 | 117 117 47 | 125 125 55 | 146 146 66 | 175 175 55 | 250 250 95 | 250 250 95 | 350 350 117 | 450 450 140 | 630 630 185 | 630 630 185 | |
AC-3 Pe Kw | 22 40 45 | 22 45 59 | 30 55 110 | 45 75 110 | 55 90 132 | 59 110 160 | 80 140 200 | 90 160 250 | 110 200 355 | 160 280 500 | 220 370 600 | 220 400 650 | |
Non-interrupt Operation le(A) | 145 | 160 | 200 | 230 | 260 | 300 | 400 | 445 | 550 | 800 | 1000 | 1000 | |
